modelling trait evolution on phylogenies

Before starting this practical set the appropriate working directory and load the necessary libraries in R:

Libraries:

setwd("~/Desktop/MP25/data/example_PCM/")
install.packages('ape')
install.packages('phytools')
install.packages('geiger')
library(ape)
library(phytools)
library(geiger)

As always in phylogenetic comparative methods, two fundamental components are required:

a phylogeny - but ultrametric tree is much better
either discrete or continuous trait(s)

Here we will leverage a Octopodiformes phylogeny and a discrete classification of the maximum depth at which they have been observed:

P - pelagic
E - euphotic, up to 100 meters in depth
D1 - disphotic 1, up to 400 meters in depth
D2 - disphotic 2, up to 400 meters in depth
N - no-photic, more than 800 meters in depth

Let's start by importing the tree and the data:

tree <- read.tree("tree_octopodiformes.nwk")
tree <- force.ultrametric(tree,"extend")
data <- read.table("traits_octopodiformes.csv", sep = ",", row.names = 1, header = T)
data <- setNames(as.factor(data[,"discrete"]),rownames(data))

Then, as seen in other instances, we have to find an model appropriate for our data. Also here, the central component is a rates matrix, not dissimilar from the Q matrix we have seen for amino acids / nucleotides models. Let's fit three models to the data, which are:

a timetree
character states

The three models are:

ER - Equal Rates
SYM - SYMmetrical
ARD - All Rates Different

ER <- fitDiscrete(tree, data, model="ER")
SYM <- fitDiscrete(tree,data,model="SYM")
ARD <- fitDiscrete(tree,data,model="ARD")

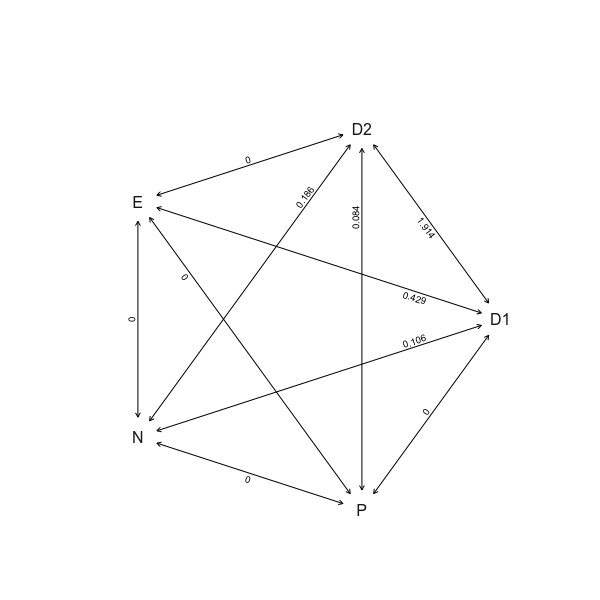

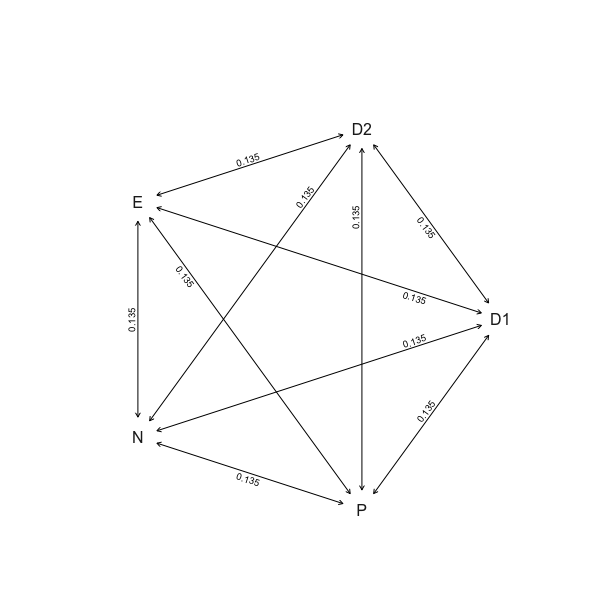

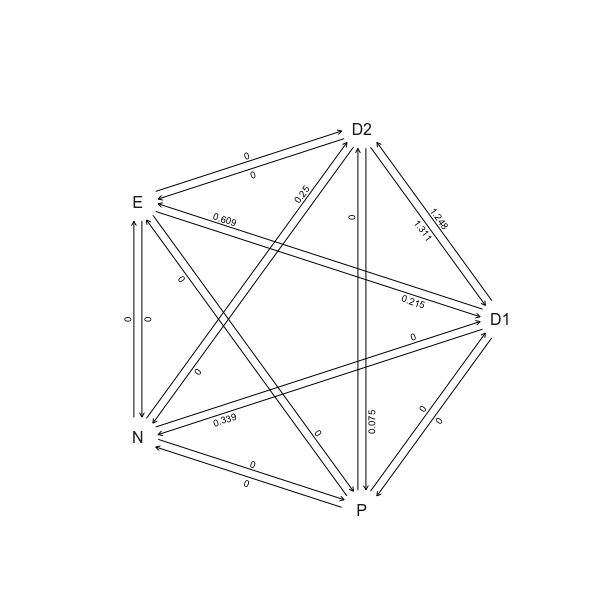

Here is a graphical visualisation of the models.

alt text

By recalling the object you can also see the Q matrix! WHich model do you think this one is?

                  D1            D2             E             N             P
    D1 -2.195643e+00  1.247291e+00  6.094590e-01  3.388934e-01  1.600471e-20
    D2  1.310616e+00 -1.385760e+00  5.926930e-19  3.286915e-24  7.514486e-02
    E   2.149612e-01  1.223017e-40 -2.149612e-01  6.065468e-19  7.414863e-18
    N   1.205376e-24  2.497221e-01  3.362381e-16 -2.497221e-01  5.080608e-26
    P   4.972750e-62  7.598279e-16  1.330707e-29  2.225052e-59 -7.598279e-16

Then we will asses how good their fit is, using the Akaike weights - the smaller the better!

aicc<-setNames(c(ER$opt$aicc,
                 ARD$opt$aicc,
                 SYM$opt$aicc),
               c("Equal Rates",
                 "All Rates Different",
                 "Symmetrical"))
aicw(aicc)

We can see that ARD is the better fit!

                         fit     delta            w
Equal Rates         123.9865  0.000000 9.893373e-01
All Rates Different 180.3405 56.354017 5.730930e-13
Symmetrical         133.0470  9.060562 1.066273e-02

Then we can use the best-fit model to perform the ancestral state reconstruction:

fitARD<-ace(data,tree,model="ARD",type="discrete")

Then we need to specify a color for each state:

levels(data)
cols <- c("red","purple","orange","blue","yellow")

trait_cols <- setNames(c(
                 levels(data)[1],
                 levels(data)[2],
                 levels(data)[3],
                 levels(data)[4],
                 levels(data)[5]),
               c("red",
                 "purple",
                 "orange",
                 "blue",
                 "yellow"))

trait_cols

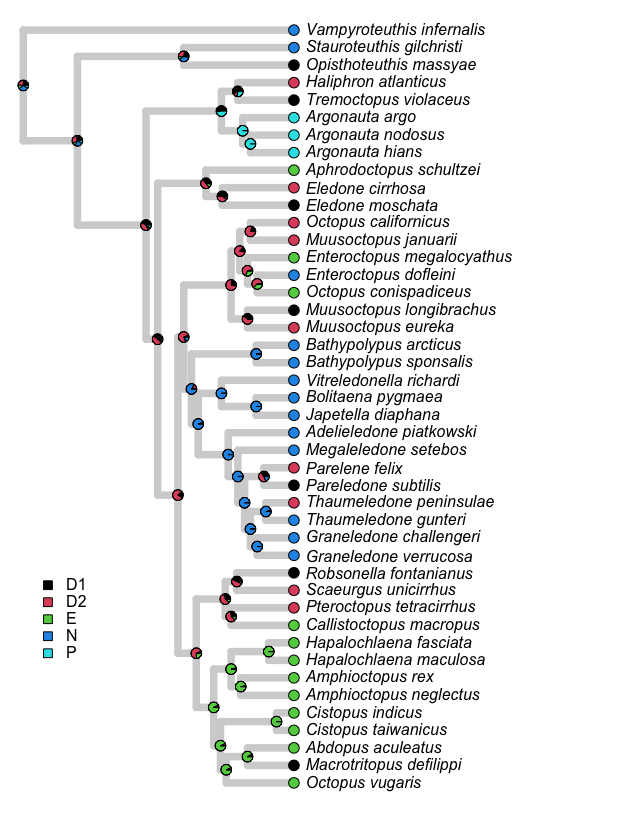

And then plot the ASR on the phylo:

plot.phylo(tree,lwd=7.5, edge.width = 7.5, label.offset = .2,show.tip.label = T,no.margin = TRUE,
           edge.color = "lightgray")
nodelabels(node=1:tree$Nnode+Ntip(tree),pie=fitARD$lik.anc,cex=0.42, piecol = cols)
tiplabels(pie=to.matrix(data[tree$tip.label],levels(data)),cex=0.42, piecol = cols)

alt text

So ... do Octopodiformes come from the photic zone ... or they originated deep down in the sea where the light is extremely scarce?
